HB232-40/HB234-25 Residual Current Circuit Breaker (RCCB)

It is electro-mechanical in nature. The highlight here is that:

It can be wired in either direction.

It is accord with IEC/EN 61008-1 (mains voltage independent RCCB), It is with electro-mechanical release that works safely even without supply voltage or line voltage lower than 50V.

Type -A: Protects against special forms of residual pulsating DC which have not been smoothed.

Protection of persons against electric shock by direct contact (30 mA).

Protection of persons against electric shock by indirect contact (300 mA).

Protection of installations against fire risks (300 mA).

Provides comprehensive protection to household and commercial distribution systems.

Technical Data

Electrical characteristics
Insulation voltage (Ui)	400 V
Pollution degree	3
Rated impulse withstand voltage (Uimp)	4 kV

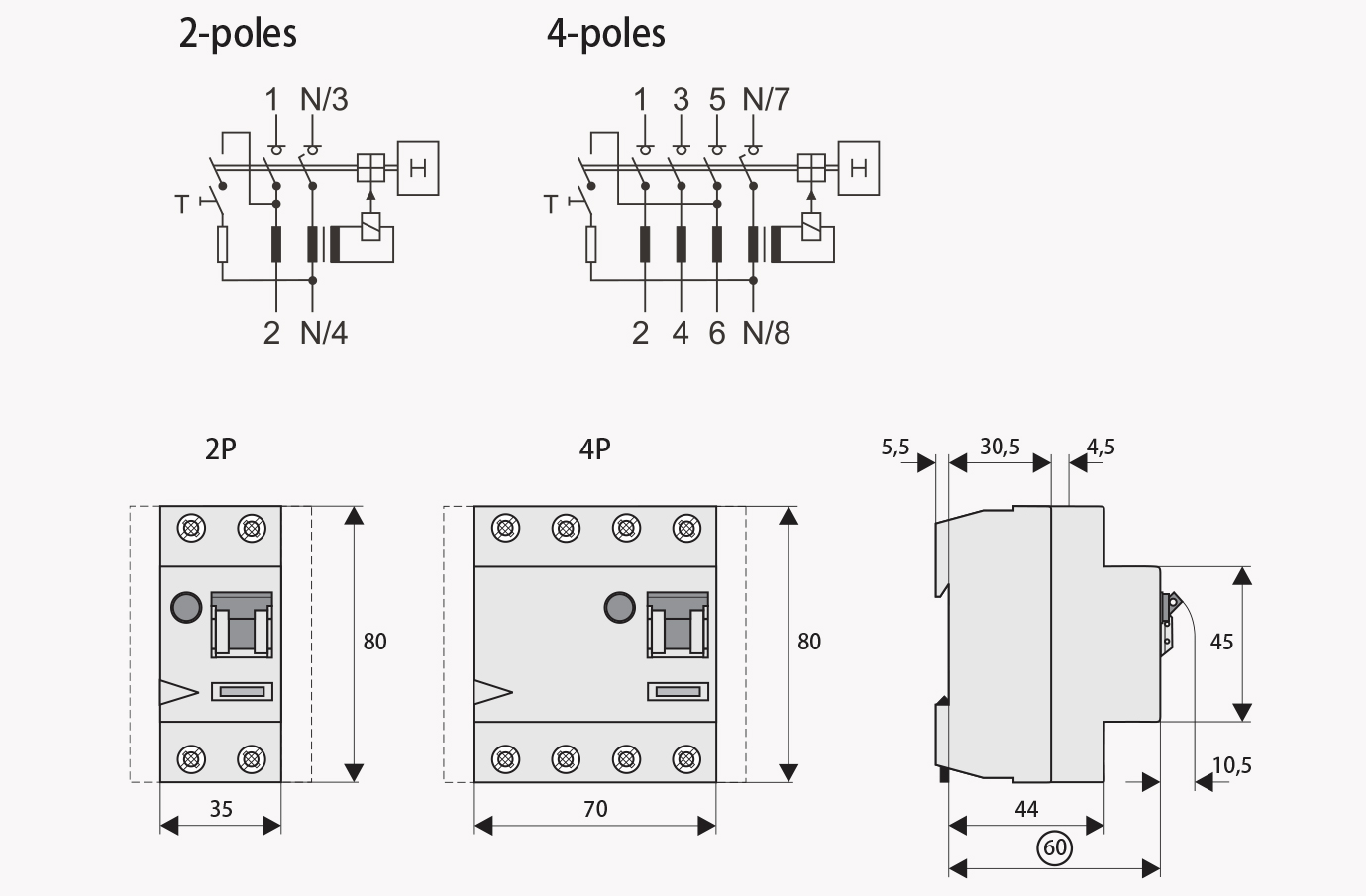

Dimensions（mm）

Electrical Characteristics

ccording to IEC/EN 61008-1
Surge currentwithstand (8/20 μs)withouttripping	AC and A types (notselective )	1250A
	AC, A,(selective )	3 kÂ
Conditional ratedshort-circuit current(Inc/IDc)	With FU 125 A gG fuse	10,000 A
Behaviour in case ofvoltage drop		Residual current protection down to 0 V accordingto IEC/EN 61008-1 § 3.3.4
Additional characteristics
Degree of protection	Device only	IP20IP40 with screw shield
	Device in modular enclosure	IP40Insulation class II
Endurance (O-C)	Electrical	> 2 000 cycles
	Mechanical	> 5 000 cycles
Operatingtemperature		-25° C to +40° C / -13° F to +104° F
Storagetemperature	AC, A	-40° C to +85° C / -40° F to +185° F

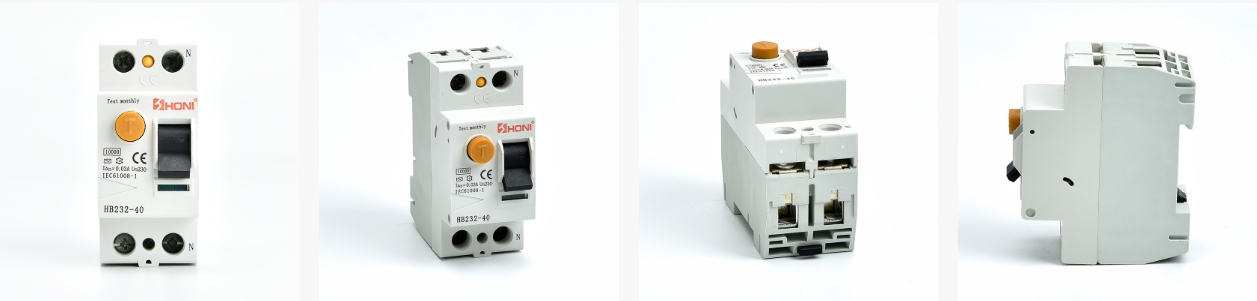

HB232-40

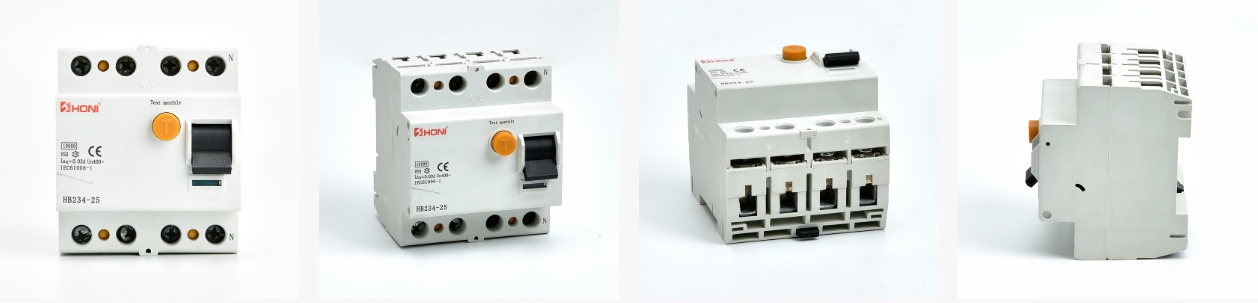

HB234-25
