Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.
This DC MCB Was designed for direct current(DC) control circuit applications,used for short -circuit and over-current protection within appliances or electrical equipment. It provide optimization products for DC system applications such as.

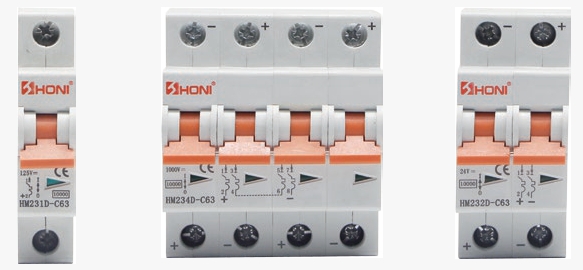

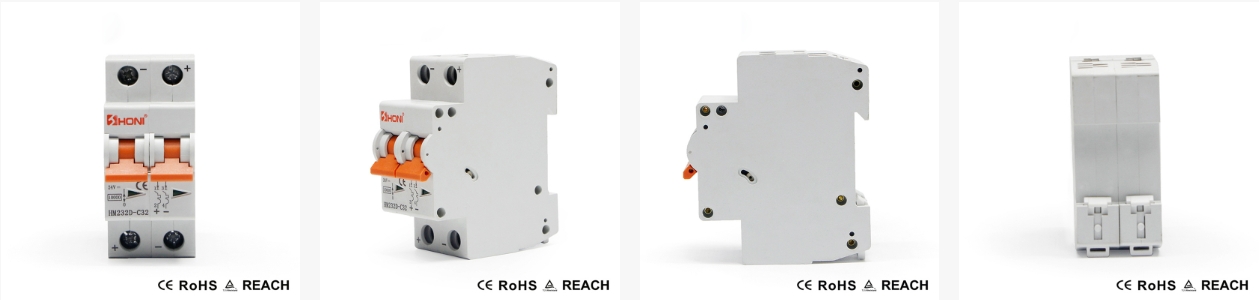

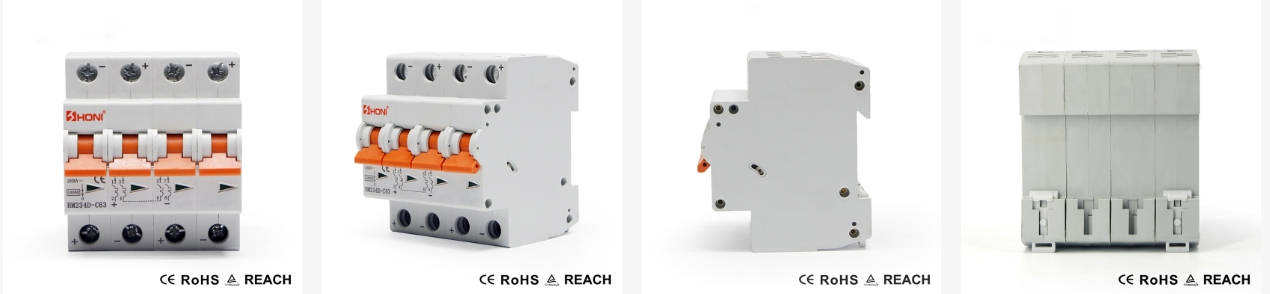

| Model: | HM231(D)-C63 | |||||
| H | M | 23 | 1 | (D) | C | 63 |
| CODE | MCB(M:MCB; O:RCBO; C:Contactor; B:RCCB; D:Switch-disconnector) | Design NO. | Poles (1: 1P; 2:2P; 3: 3P; 4:4P) | DC MCB | Tripping curve (B、C、D) | Rated current (6A-63A) |
■ Protection against both overload and short circuit
■ High short-circuit capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection
■ Easy mounting onto 35mm DIN rail

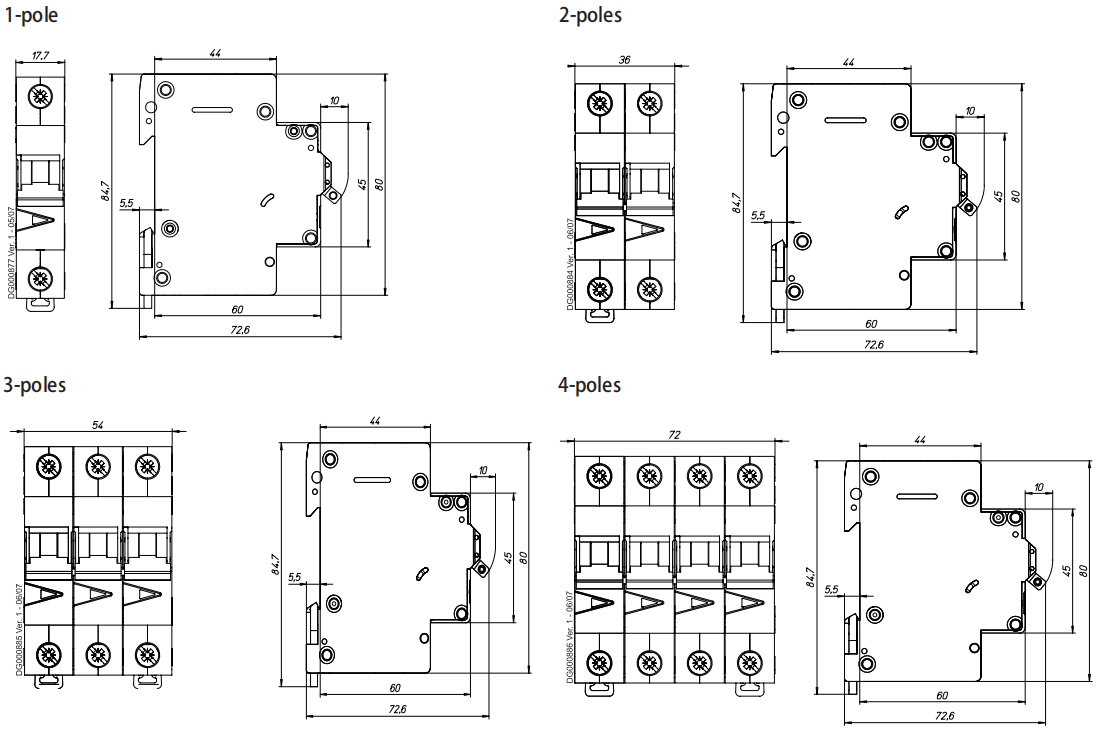

| Electrical characteristics | |
| Pole No. | 1P ，2P， 3P， 4P |
| Rated voltage | DC48V 110V，220V，250V，400V，500V，630V，800V，1000V |
| Rated current (A) | 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63； |
| According to IEC/EN 61008-1 | |
| Tripping curve | B、C |
| Rated short-circuit capacity (Icn) | 10kA |
| Rated frequency | 50/60Hz |
| Energy limiting class | 3 |
| Rated impulse withstand voltage | 6.2kV |
| Electro-mechanical endurance | 6000 |
| Contact position indication | |
| Connection terminal | □ Screw terminal □ Pillar terminal with clamp |
| Connection capacity | Rigid conductor up to 25mm² |
| Fastening torque | 2.0Nm |
| Installation | □ On symmetrical DIN rail 35mm □ Panel mounting |
