HM232

Products

Our MCB breaking capacity is up to 10-15KA , the DC

voltage for MCB MCCB SPD is up to 1500V.

❮

❯

Protection against both overload and short circuit

High-quality miniature circuit breakers for industrial applications and residential applications

Contact position indicator red-green

Guide for secure terminal connection

DlN rail clip, permits removal from existing busbar system

Comprehensive range of accessories suitable for subsequent installation

Rated currents up to 63 A

Tripping characteristics B, C, D, OV

Rated breaking capacity up to 15 kA according to IEC/EN60947-2

Rated breaking capacity up to 10kA according to IEC/EN60898

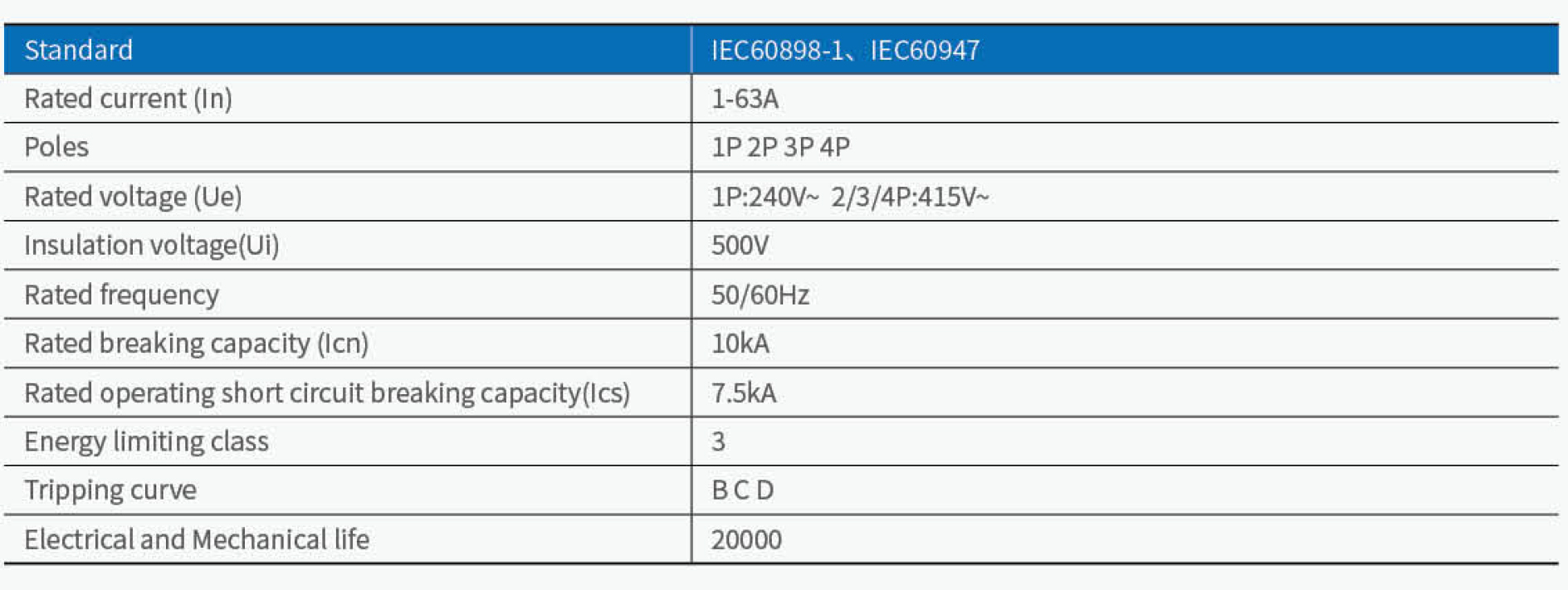

Technical Data

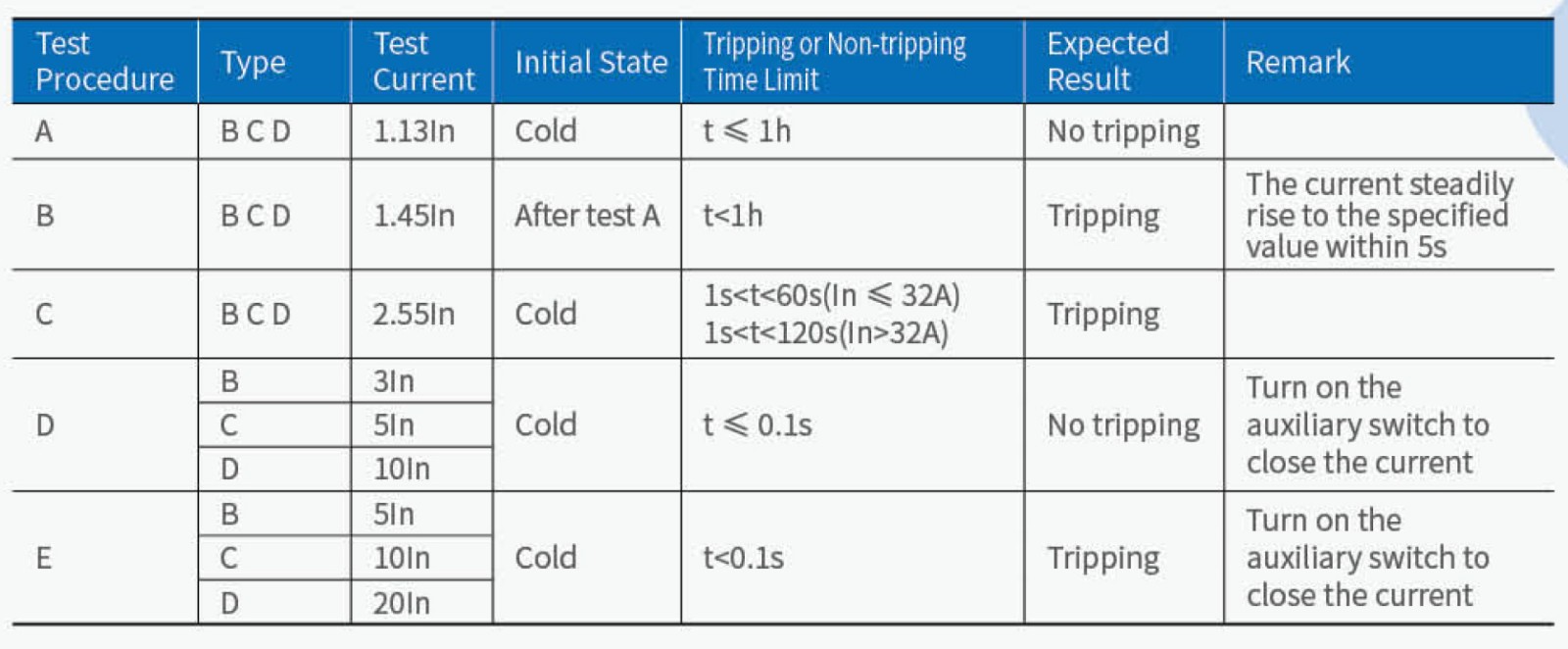

Overload Current Protection Characteristics

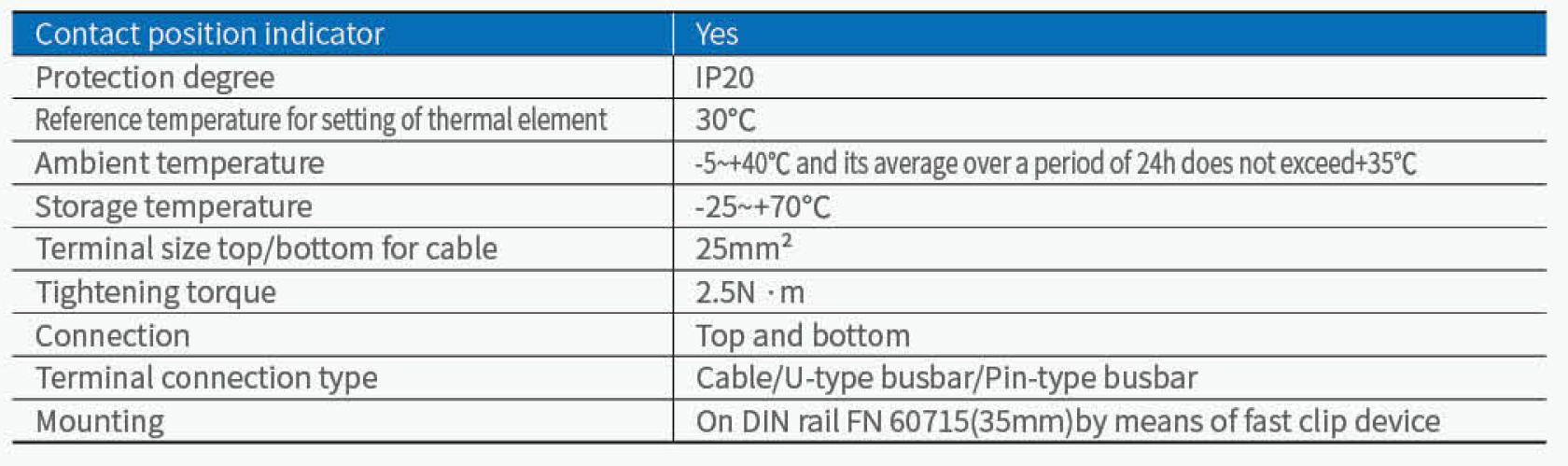

Installation

Combination With Accessories

Dimensions（mm）
