Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.
Application
Easy installation
Low Insertion Loss
Wide operating frequency spectrum
Very fast response
High Energy GDT Technology
Field Replaceable GDT
Waterproof Design
DC Pass confifiguration
Bi-Directional Protection
Good transmission effect
Strong anti-interference
complies IEC 61643-21 standard
HS2W is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.
■Suitable for the protection of radiofrequency transmission and reception equipment.
By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.

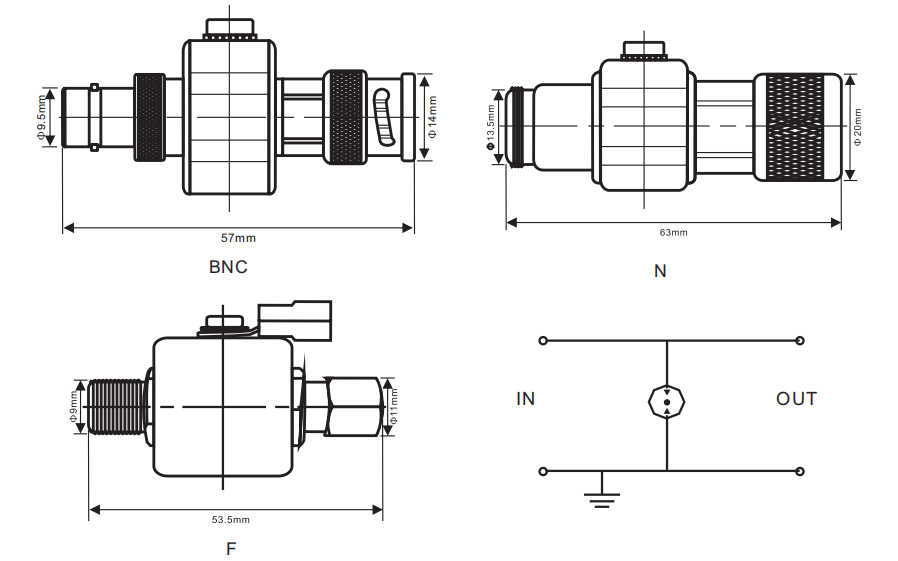

■For BNC, F, N, TNC,connectors.
■Ideal for the protection of transmission and reception systems such as TV and radio antennas, closed circuit TV (CCTV), alarms, etc.
■Discharge capacity with an 8/20 μs waveform: 20 kA.
Type Technical Data Frequency | HS2W-BNC,HS2W-F,HS2W-N,HS2W-TNC 0-3GHZ |
| Maximum continuous operating voltage (UC) | 230V |
| Nominal discharge current (8/20μs) (In) | 10kA |
| Maximum discharge current (8/20μs) (Imax) | 20kA |
| Voltage protection level (8/20μs) (Up) | ≤ 600V |
| Maximum Current | 10A |
| Maximum peak power | 100W |
| Impedance | 50Ω |
| Insertion Loss | < 0.2dB |
| Return Loss | > 20dB |
| VSWR | < 1.2:1 |
| Response time (tA) | < 100ns |
| Degree of protection | IP 65 |
| Enclosure Material | Metal |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Connection | BNC, F, N ,TNC |
| Housing | In-line Installation |
| Field Replaceable GDT | YES |
| Type of SPD | C2,C3 |
| Product standards | IEC 61643-21, EN 61643-21 |
