Application
Power, Data and Video in a Single Unit
Hybrid GDT and Diode Technology
24, 120, 230V Confifigurations
Compact Aluminium Housing
Fail-safe /self-protected design
Very fast response
Good transmission effect
Strong anti-interference
Indoor and outdoor cabinet applications
Robust protection in a compact size
complies IEC 61643-21 standard

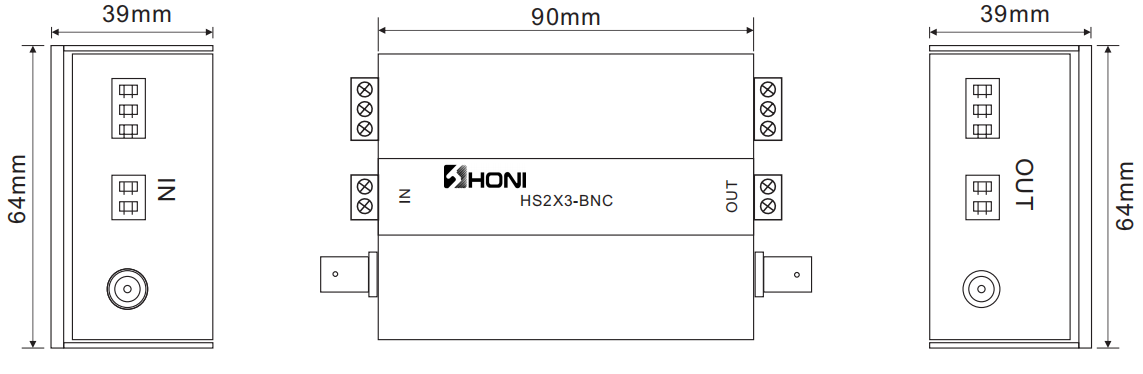

HS2X series CCTV Surge Protector with Power Port CCTV surge protector is a single channel, in-line, coaxial multi-stage video surge protector for analog cameras or head-end applications.In accordance with IEC 61643-21.
■Suitable for the protection of coaxial lines of TV and CCTV systems. By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.
■For BNC, Rj45 connectors.
■Discharge capacity with an 8/20 μs waveform: 10 kA.
Model and Meaning:
OBVX-3-BNC (Video / Power / Data)
OBVX-2-RJ45 (Video / Power)
OBVX-2-BNC (Video / Power)
Type Technical Data | HS2X-3-BNC,HS2X-2-RJ45,HS2X-2-BNC |
Power | |
| Nominal Voltage (Un) | 24Vdc / 120Vac / 230Vac |
| Maximum Voltage (UC) | 30Vdc / 150Vac / 255Vac |
| Maximumworking current (IL) | 10A |
| Nominal discharge current (8/20μs) (In) | 10kA |
| Maximum discharge current (8/20μs) (Imax) | 20kA |
| Voltage protection level (8/20μs) (Up) | ≤ 0.3kV / 0.8kV / 1.2kV |
| Connection | Screw terminal: maximum 2.5 mm2 |
| Failure Mode | Power failure and green led off |
Data | |
| Maximum Voltage (UC) | 8Vdc |
| Nominal discharge current (8/20μs) (In) | 5kA |
| Maximum discharge current (8/20μs) (Imax) | 10kA |
| Voltage protection level (8/20μs) (Up) | ≤ 20V |
| Connection | Screw terminal : maximum 1.5 mm2 |
Video (BNC / RJ45) | |
| Maximum Voltage (UC) | 8Vdc |
| Nominal discharge current (8/20μs) (In) | 5kA |
| Maximum discharge current (8/20μs) (Imax) | 10kA |
| Voltage protection level (8/20μs) (Up) | ≤ 20V |
| Connection | BNC / RJ45 |
