Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.
It is electro-mechanical in nature.The highlinght here is that it can be wired in either direction.This makes retrofit a breeze with regards to matching wiring conventions.it also busbar campatible
In addition to fault currents in the AC and pulse current range,type B also detects DC fault currents,which can occur in frequency inverter controls,photovoltaic systems as well as through the electronic use in households,and increases safety considerably
● Applications with:
. Appliances and motors with 1Phase frequency converters with PFC([Power factor compensation)or .1 phase frequency converters supplied between phase/phase or .3 phase frequency converters
. DC systems(photovoltaic systems,ups units..)
. In front of PV Systems/ Battery banks/ UPS Units/EV charging Medical devices/ Frequency converters/ Motor controllers
. Sensitive to all residual currents according up to lkHz.
| Residual Current Devices-General Data |
| Short description of the most important RCD types: |
| Symbol Description |
 HONI standard. Suitable for outdoor installation (distribution boxes for outdoor installation and building sites+-25 up to -25℃ . |
 Type AC: AC current sensitive RCCB |
 Type A: AC and pulsating DC current sensitive RCCB |
 Trip also at frequency composition(10 Hz,50 Hz, 1000 Hz) |
 Type B:All-current sensitive RCD switchgear for applications where DC fault currents may occur.Non-selective non- delayed. Protection against all kinds of fault currents. |
| Rwsidual current circuit breakers | |

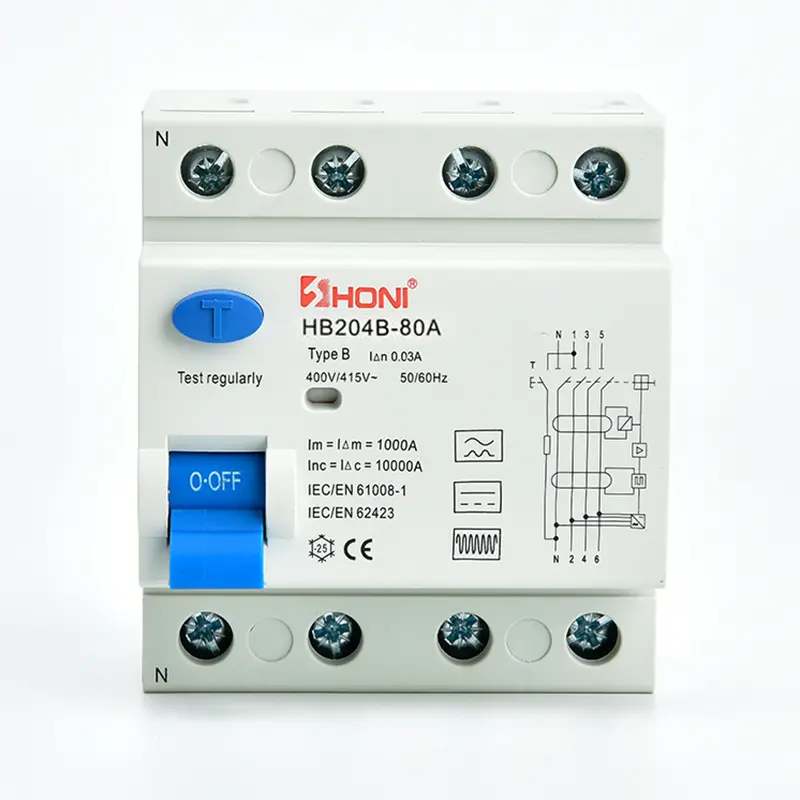

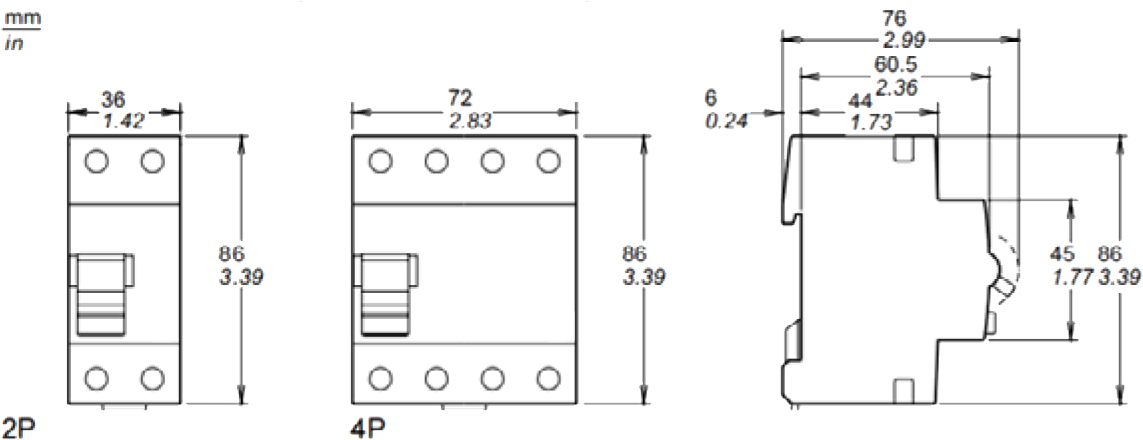

| Type | RCCB-B-80A |
| 2P | 230g/8.11oz |
| 4P | 500g/17.64oz |
| ITEMS | DATA | ||||
| Rated voltage | 1P+N 240V,3P+N 415V | ||||
| Rated current | 16A 25A 32A 40A 80A | ||||
| Rated residual operating current | 0.03A,0.1A,0.3A,0.5A | ||||
| Rated residual current type | AC+A+DC+F+high frequency 1kHz | ||||
| Rated impulse withstand voltage(Uimp) | 4kv | ||||
| According to IEC/EN 61008-1 | |||||
| Making and breaking capacity(Im/IDm) | 1250A | ||||
| Surge current withstand(8/20 ㎲)without tripping | B types(selective) | 3 kA | |||
| B types(no selective) | 3 kA | ||||
| Rated short-circuit Bresking Capability | 1000A | ||||
| Addition characteristics | |||||
| Degree of protection | Device only | IP20IP40 with screw shield | |||
| Device in modular enclosure | IP40Insulation class ll | ||||
| Endurance(O-C) | Electrical | >2000 cycles | |||
| Mechanical | >5000 cycles | ||||
Operatingtemperature  | -25℃to+60℃/-40℃F to +140°F | ||||
| Storage temperature | B type | -40℃to+60℃/-40℃F to +140°F | |||
| Range of test button operating voltage | 30mA | 2P | 160…250V AC | ||
| 4P | 250…440V AC | ||||
| 100,300,500mA | 2P | 185…250VAC | |||
| 4P | 185…440V AC | ||||
| Connectinf capactity | 16 mm2 | ||||
| Tightening torque | 3N.m | ||||
| Pollution degree | Level 2 | ||||
| Installation Category | ll | ||||
