Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.

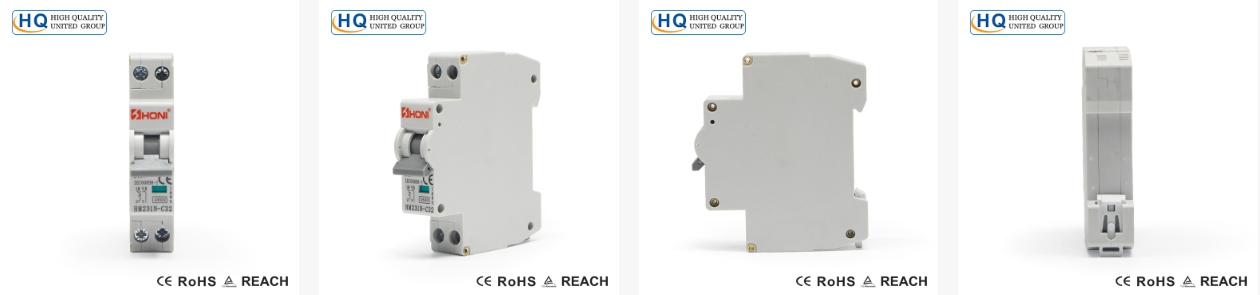

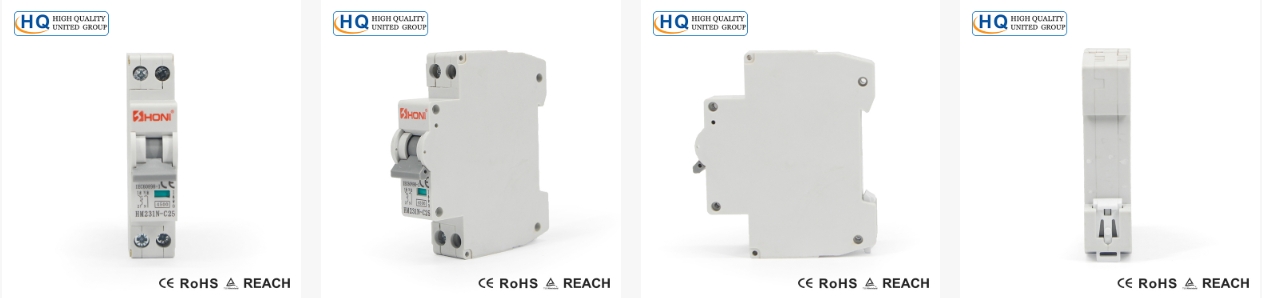

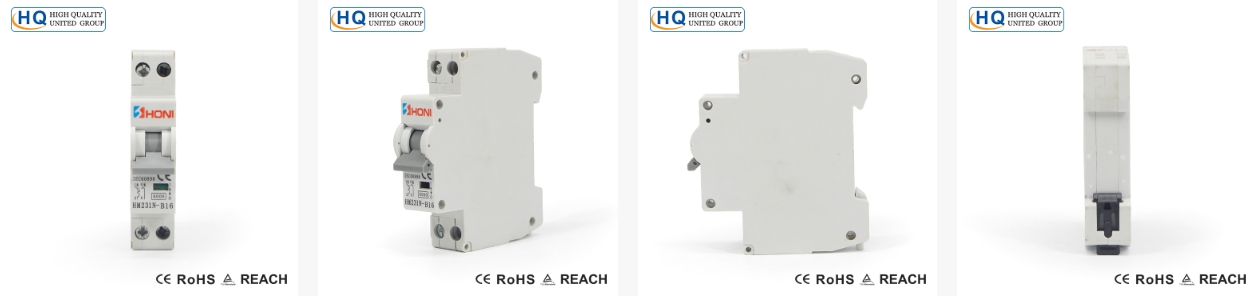

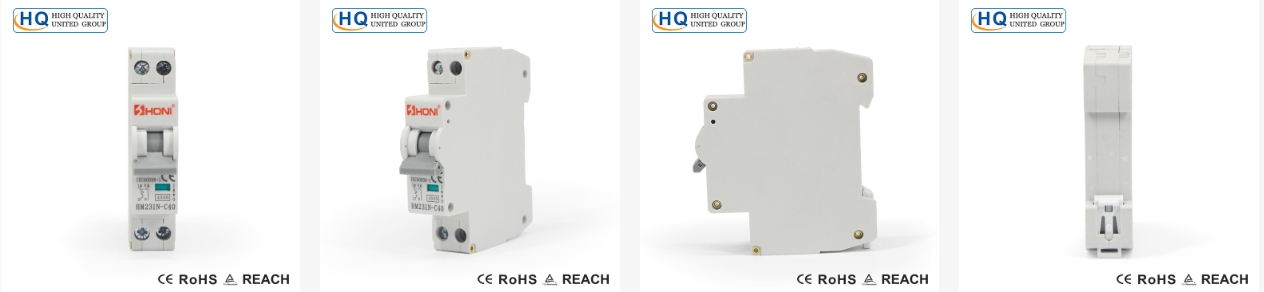

Construction and Feature
■Pole No.: 1P+N
■Rated voltage: AC 230V
■Rated current (A): 6, 10, 16, 20, 25, 32，40
■Tripping curve: B、C
■Rated short-circuit capacity (Icn): 6kA
■Rated service short-circuit capacity(Ics): 6kA
■Rated frequency: 50/60Hz
■Electro-mechanical endurance: 4000
■Contact position indication
■Connection terminal: Pillar terminal with clamp
■Connection capacity: Rigid conductor up to 10㎟
■Fastening torque: 1.2Nm
■Installation:
□On symmetrical DIN rail 35mm
□Panel mounting
■Terminal Connection Height: H1=19mm H2=22mm
