Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.
Application
Easy installation or retrofifit
Din-rail mountable
Fail-safe /self-protected design
Remote indicator (optional) with 3 pin NO/NC contact
IP20 fifinger-safe design
Visual indicator
Small foot print
HS2VV5-D20 is the range of devices for discharging induced transient overvoltages (Type 2+3 / Class II+III), in accordance with EN/IEC 61643-11. DIN rail plug-in format.
Ability to discharge induced voltage surges(8/20 μs), while offering very fifine protection of sensitive equipment(1.2/50 μs).
■Suitable for the second stage of protection in supply distribution panels in which
Type 1 protection devices are installed, or for the fifirst stage of protection in residential, commercial or other applications not exposed to direct strikes and with no external lightning protection system.
■Discharge capacity with an 8/20 μs waveform. Imax: 20 kA.
■Exclusive devices for TNS, TNC, TT , IT earthing systems.
■Exclusive devices which are compatible with Power Line Communication networks.
■Biconnect – two types of terminal: for rigid or flflexible cable and for fork type comb busbar.
■Available with optional remote signalling.
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.

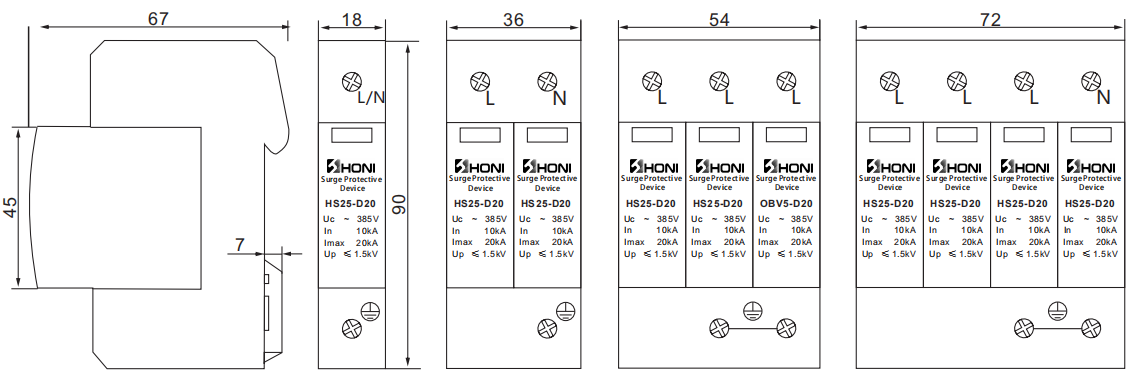

Type | HS25-D20 |
Technical Data Maximum continuous voltage (UC) (L-N) | 275 / 320 / 385 / 420V |
Maximum continuous voltage (UC) (N-PE) | 275V |
SPD to EN 61643-11 | Type 2+3 |
SPD to IEC 61643-11 | class II+III |
Nominal discharge current (8/20μs) (In) | 10kA |
Maximum discharge current (8/20μs) (Imax) | 20kA |
Voltage protection level (Up) (L-N) | ≤ 1.2 / 1.3 / 1.5 / 1.6kV |
Voltage protection level (Up) (N-PE) | ≤ 1.5kV |
Response time (tA) (L-N) | < 25ns |
Response time (tA) (N-PE) | < 100ns |
Thermal Protection | YES |
Operating State/Fault Indication | Green (good) / White or Red (replace) |
Degree of protection | IP 20 |
Insulating material / flammability class | PA66,UL94 V-0 |
Temperature range | -40ºC~+80ºC |
Altitude | 13123 ft [4000m] |
Conductor Cross Section (max) | 35mm2 (Solid) / 25mm2 (Flexible) |
Remote Contacts (RC) | Optional |
Format | Pluggable |
For mounting on | DIN rail 35mm |
Place of installation | indoor installation |
1. Strict control on choose of the raw material sources.
2. Speciific technology guide for the production of each product.
3. Completed quality testing system for the semi-finished products and finised products.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
