Our MCB breaking capacity is up to 10-15KA , the DC
voltage for MCB MCCB SPD is up to 1500V.
Construction and Feature

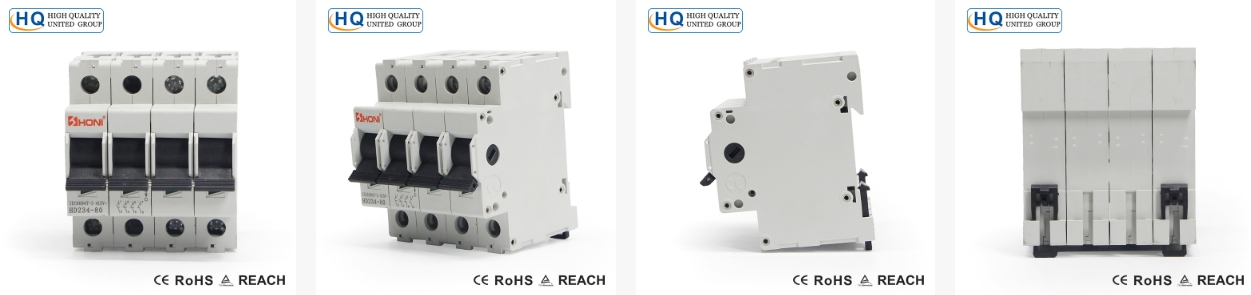

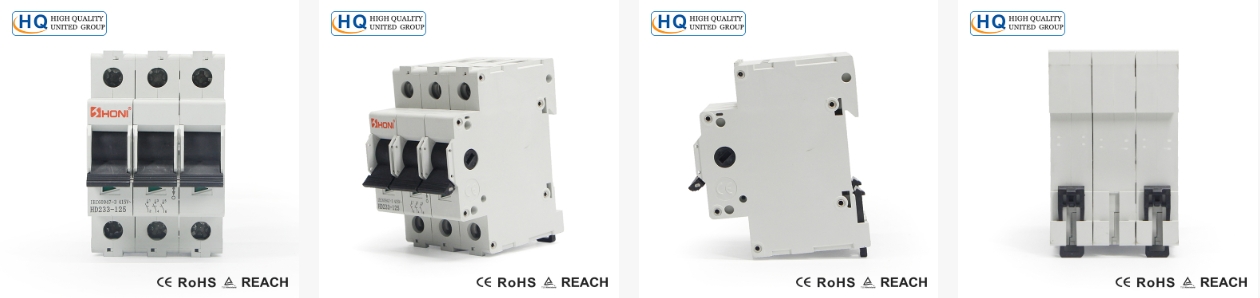

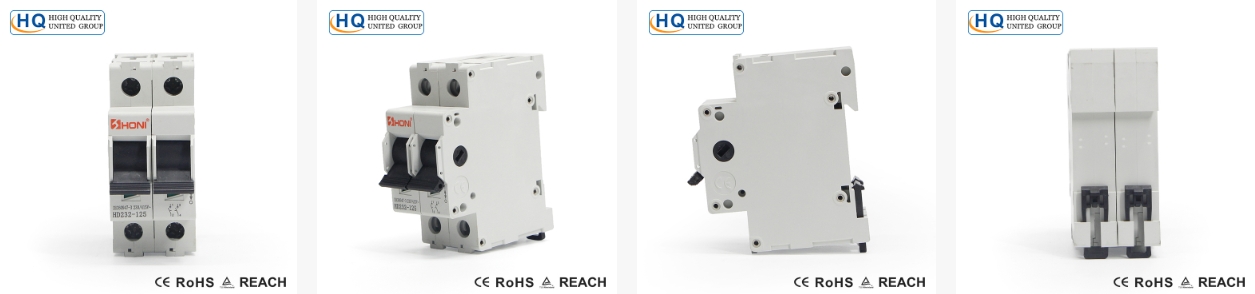

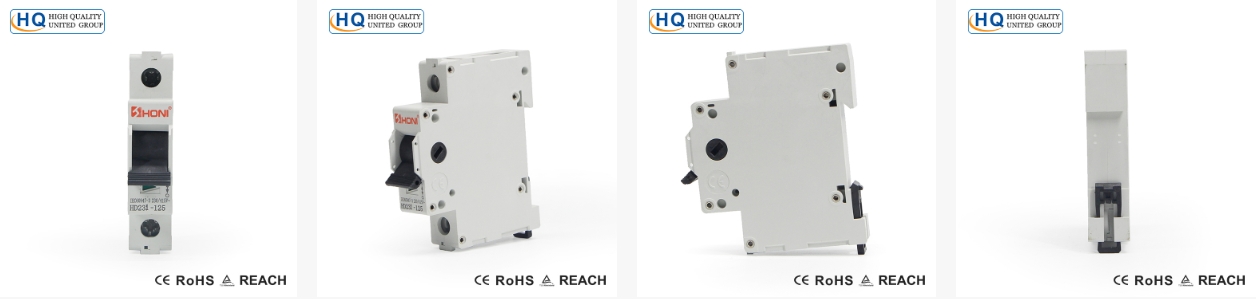

■Pole No.: 1P, 2P, 3P, 4P
■Rated current(A): 16, 25, 40, 63, 80, 100
■Rated voltage: 230/400V AC
■Rated frequency: 50/60hz
■Rated short-circuit making capacity: 3kA
■Rated withstand current: 1.5kA within 1sec
■Electro-mechanical endurance: 10000 cycles
■Connection capacity: Rigid conductor 35㎟
■Connection terminal:
□Screw terminal
□Pillar terminal with clamp
■Installation:
□On symmetrical din rail 35mm
□Panel mounting
■Terminal Connection Height: H=15mm
